Pack 02
BUILD INSTRUCTIONS
Advice from the experts
Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly.
Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly. Using the wrong screws may damage the parts. Only use the correct size screwdriver that fits the screw head firmly.
When securing parts together using multiple screws, fit each screw loosely to ensure all the parts are correctly aligned before gently tightening them firmly, but not overtight, in the order in which you placed them.
The screwdriver can be magnetized by stroking it with a magnet (fridge magnet, etc.) enabling it to hold the screws and make assembly easier.
If a screw is tight going into a metal part, do not force it as you may shear the head off. Remove it and put a tiny smear of Vaseline, soap or light oil on the thread. That will lubricate it and make it easier to tighten.
Some parts will require a little glue for assembly. Please apply glue sparingly and use a cocktail stick so that you don’t use too much nor apply the glue too heavily. We recommend superglue gel or Extra Thin Liquid modeling glue. Where possible, parts should be test-fitted in place before gluing.
Make sure you have good ventilation when using adhesives and to replace caps firmly.
Use a magnet to help find screws that have fallen on the floor.
Use masking tape to hold parts temporarily in place.
Cut parts from a sprue (framework) with side cutters or a craft knife. Side cutters tend to be easiest.
During the course of this build, you will receive many pieces that you will assemble immediately – following the instructions in the corresponding stage – and other pieces that you should store safely to one side, for use in future assembly stages.
Always protect the paint finish on components by placing a cutting mat, sheet of white paper or soft cloth on your work surface.
When plugging cables in, ensure the power is switched off. Tweezers can be used to fit the PVC cables by gripping carefully around 5mm from the end of the cable. If a cable needs to be removed from a socket, do not pull on the cable as this could damage the connection. Grip the plug with tweezers to remove it.
Left and Right! When building your Goldfinger DB5, the left- or right-hand side refers to that side as if you are sitting in the car.
When you see this symbol, pay attention to the instruction text in bold and check the orientation of the parts in the image as this will be particularly important for assembly in later stages.
WARNING: Some parts are assembled using magnets. These magnets can cause serious injury if they are swallowed. Keep away from children. If you suspect a magnet has been swallowed, seek medical help straight away.
This is not a toy. Not suitable for children under 14 years old due to small parts. Adult supervision required.
PARTS LIST
| 8-A Right cam cover | 8-G Oil filler neck |
| 8-B Right cam shaft | 8-H Oil filler cap |
| 8-C Cylinder head (upper part) | 8-I Left cam cover breather pipe |
| 8-D Left cam shaft | 8-J Right cam cover breather pipe |
| 8-E Left cam cover | 3x PS01 screws |
| 8-F Cylinder head part x2 |
Step 1
The cam covers are marked ‘L’ for left (8-E) and ‘R’ for right (8-A).
Step 2
Push the right cam cover breather pipe (8-J) into the right cam cover (8-A).
Step 3
Screw the breather pipe to the cam cover using 1x PS01.
Step 4
Push the left cam cover breather pipe (8-I) into the left cam cover (8-E).
Step 5
Screw the breather pipe to the cam cover using 1x PS01.
Step 6
Align the cam shafts (8-B and 8-D) and cam covers with the cylinder head (8-C).
Note that the cam shafts are marked 'L' and 'R'.
Step 7
Press the left shaft into the cylinder head.
Ensure the two pins (circled) are facing outwards.
Step 8
Press the right shaft into the cylinder head.
Ensure the two pins (circled) are facing outwards.
Step 9
Firmly press the left and right cam covers onto the cam shafts.
You may need to remove excess paint before pressing the parts together.
Step 10
Push the oil filler cap (8-H) onto the oil filler neck (8-G).
Step 11
Press the oil filler neck into the cylinder head.
Step 12
Press the two cylinder head parts (8-F) into the cylinder head.
STAGE COMPLETE
PARTS LIST
| 9-A Distributor | 9-D Electrical cable (long) |
| 9-B Cable tube | 9-E Electrical cable (short) x5 |
| 9-C Spark plug x6 | 7x PS21 screws |
Step 1
Cut the six spark plugs (9-C) from the sprue.
Step 2
Press one of the spark plugs into the cylinder head (stage 008).
Step 3
Screw the spark plug to the cylinder head using 1x PS21.
Step 4
Press the other five spark plugs into the cylinder head.
Screw them in place using 5x PS21.
Step 5
Push the distributor (9-A) into the cable tube (9-B).
Do not glue the parts together at this point.
Step 6
Press the cable tube onto the cylinder head.
Step 7
The holes in the cable tube and spark plugs should look like this.
Step 8
Push the distributor into the cylinder head.
Step 9
Separate the longer electrical cable (9-D) from the shorter ones (9-E).
Step 10
Bend the long electrical cable and push it into the distributor.
Do not glue the cable at this point.
Step 11
Push one of the shorter cables into the next spark plug along.
Step 12
Bend the cable and push the end into the cable tube.
Flatten the cable once in place.
Step 13
Add three more short cables into the next spark plugs in sequence in the same way.
Step 14
Push the last short cable into the remaining spark plug.
Bend the cable and push it into the end of the cable tube.
Step 15
The electrical cables should look like this once installed correctly.
STAGE COMPLETE
PARTS LIST
| 10-A Carburettors | 10-E Fuel line connector |
| 10-B Main fuel line | 10-F Fuel hose |
| 10-C Throttle linkage | 2x PS01 screws |
| 10-D Fuel line end |
Step 1
Press the throttle linkage (10-C) onto the main fuel line (10-B).
Check the image to make sure the linkage is orientated correctly.
Step 2
Press the fuel line end (10-D) onto the throttle linkage and main fuel line.
Take care not to damage the fragile parts.
Step 3

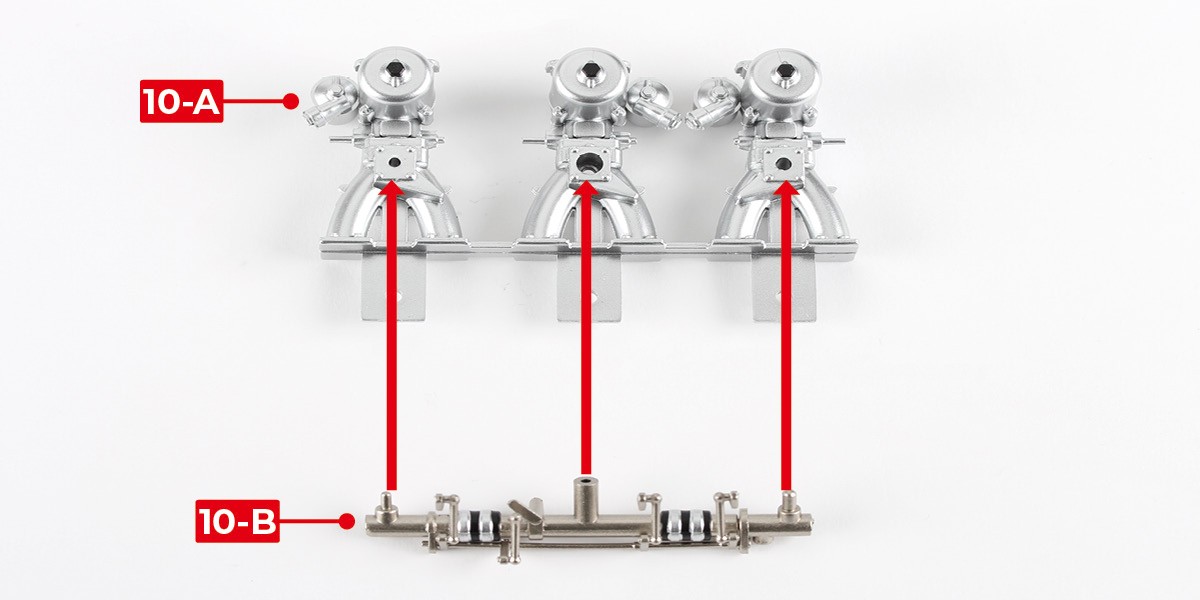

Press the main fuel line (10-B) into the carbruettors (10-A).
Step 4

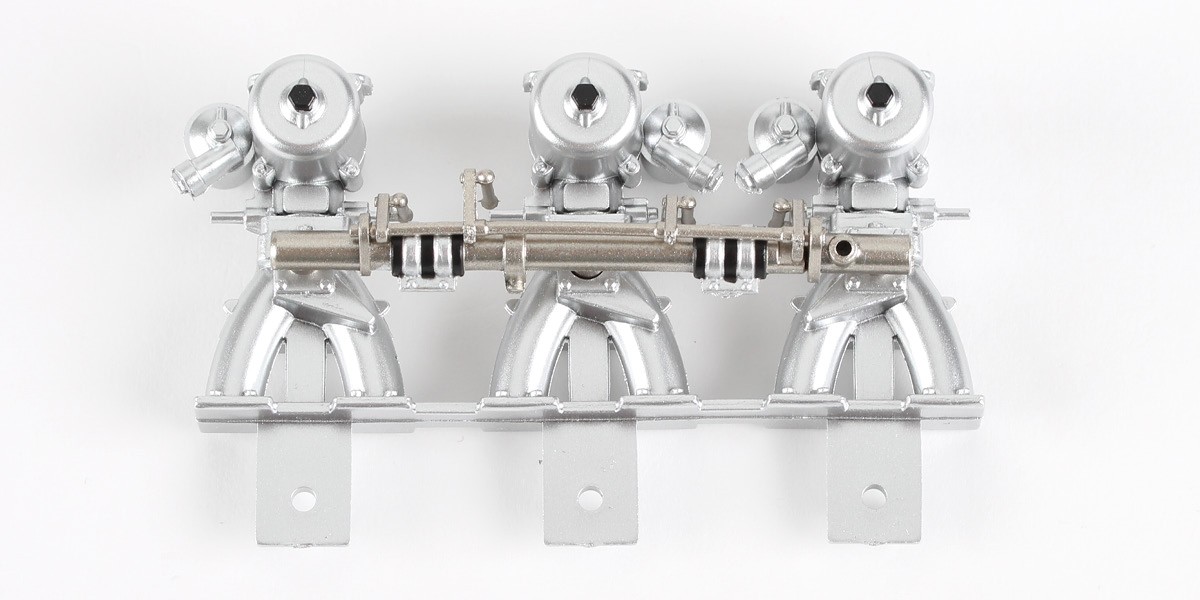

Screw the main fuel line to the carburettors using 1x PS01.
Step 5
Press the fuel line connector (10-E) into the fuel line end.
Step 6
Press the fuel hose (10-F) onto the fuel line connector.
STAGE COMPLETE
PARTS LIST
| 11-A Cylinder head (lower part) | 4x DS01 screws |
Step 1
Place the carburettors (stage 010) onto the lower part of the cylinder head (11-A).
Screw the parts together using 3x DS01.
STAGE COMPLETE
PARTS LIST
| 12-A Rear exhaust manifold | 4x DS01 screws |
| 12-B Front exhaust manifold | 5x PS28 screws |
| 12-C Cooling water thermostat |
Step 1
Push the front (12-B) and rear (12-A) exhaust manifolds into the lower cylinder head (stage 011).
Step 2
Screw the exhaust manifolds onto the cylinder head using 4x PS28.
Step 3
Place the cooling water thermostat (12-C) onto the cylinder head.
Screw the parts together using 1x DS01.
Step 4
Place the upper cylinder head (stage 009) onto the lower part.
Step 5
Screw the parts together from underneath using 2x DS01.
STAGE COMPLETE
PARTS LIST
| 13-A Engine distribution cover | 13-G Pulley A (part 2) |
| 13-B Belt | 13-H Pulley B |
| 13-C Alternator | 13-I Pulley A (part 1) |
| 13-D Distribution cover holder | 13-J Alternator pulley (part 2) |
| 13-E Alternator bracket | 3x DS01 screws |
| 13-F Alternator pulley (part 1) | 4x PS02 screws |
Step 1
Press the alternator pulley (13-F) into the alternator (13-C).
Step 2
Press the alternator bracket (13-E) onto the alternator.
Screw the parts together using 1x PS02.
Step 3
Press the alternator pulley part 2 (13-J) into part 1.
Step 4
Press part 1 (13-I) and part 2 (13-G) of pulley A together.
Check the image carefully to make sure the parts are orientated correctly.
Step 5
Press pulley A into the engine distribution cover (13-A).
Screw the parts together using 1x PS02.
Step 6
Press pulley B (13-H) into the engine distribution cover.
Screw the parts together using 1x PS02.
Step 7
Place the distributon cover holder (13-D) onto the engine distribution cover.
Screw the parts together using 2x DS01.
STAGE COMPLETE
PARTS LIST
| 14-A Left cylinder head |
| 2x DS08 screws |
| 5x DS25 screws |
Step 1
Push the left cylinder head (14-A) onto the cylinder head assembly (stage 012).
Step 2
Screw the left cylinder head to the assembly using 3x DS25.
Step 3
Press the distribution cover (stage 013) into the left cylinder head.
Screw the parts together using 1x DS25.
Step 4
Place the alternator (stage 013) onto the distribution cover.
Screw the parts together using 1x DS08.
Step 5
Wrap the belt (stage 013) around the three pulleys.
Check the image carefully to make sure the belt is positioned correctly.
STAGE COMPLETE
PARTS LIST
| 15-A Gearbox (right) | 5x DS01 screws |
| 15-B Gearbox (left) | 2x DS25 screws |
| 15-C Gearbox (front) | 3x PS28 screws |
| 15-D Gearbox (top) |
Step 1
Place the gearbox top (15-D) onto the right gearbox (15-A).
Step 2
Screw the parts together using 2x PS28.
Step 3
Press the left gearbox (15-B) onto the right gearbox.
Step 4
Screw the left and right gearbox together using 2x DS01.
Step 5
Place the gearbox front (15-C) onto the assembly.
Step 6
Screw the gearbox front to the assembly using 2x DS01.
Step 7
Press the gearbox into the cylinder head assembly (stage 014).
Step 8
Screw the gearbox to the cylinder head assembly using 1x DS25.
STAGE COMPLETE
