      Stage 13: Preparing the rockets

      PARTS LIST

      13-A13-C
      13-B x18JP x3

      Step 1

      Take 13-C and cut out the decals outlined in red.

      There are no spares. Keep any remaining for later.

      a

      Step 2

      Take 13-B and a set of decals.

      Apply decals A, B, C and D to 13-B.

      a
      b

      Step 3

      Repeat step 2 to make 18 rockets.

      Use the first 13-B as a reference when positioning the decals to help align them.

      a

      Step 4

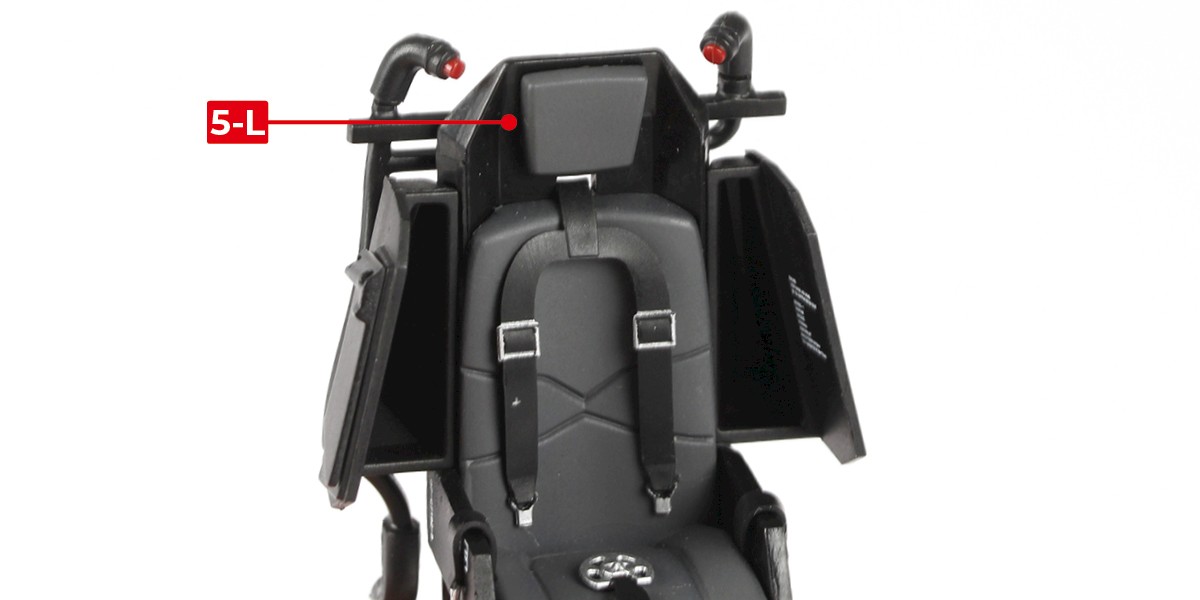

      Check that 5-L has been installed in the correct orientation. The wider end should be on top.

      a

      STAGE COMPLETE

      Apache AH-64D Engines: Version 1 or Version 2

      In the next stages you will start to assemble the nacelle for the left engine. You have two options for building the nacelle's on your model. Below you can see a comparison between the two versions to help you choose.

      Version 1 features the modified upward-facing exhaust.

      Version 2 features the original exhaust.

      If you choose to build Version 1, follow the stages titled 'v1'.

      If you choose to build Version 2, follow the stages titled 'v2'.

      Stage 14-v1: The left engine nacelle – part 1

      PARTS LIST

      14-A14-G14-N
      14-B14-H14-P
      14-C14-J14-Q x6
      14-D14-KKP x5
      14-E14-LLP x6
      14-F x314-M

      Step 1

      Cut the decal from 13-C.

      Apply the decal to 14-C as shown.

      a
      b

      Step 2

      Place 14-B onto 14-C.

      Screw the parts together using 2x LP.

      a
      b

      Step 3

      Glue 14-G to 14-D.

      a
      b

      Step 4

      Press 14-F onto the assembly.

      Repeat to fit 3x 14-F.

      a
      b
      c

      Step 5

      Press 14-E onto the assembly.

      a
      b

      STAGE COMPLETE

      Stage 14-v2: The left engine nacelle – part 1

      PARTS LIST

      14-A14-G14-N
      14-B14-H14-P
      14-C14-J14-Q x6
      14-D14-KKP x5
      14-E14-LLP x6
      14-F x314-M

      Step 1

      Cut the decal from 13-C.

      Apply the decal to 14-C as shown.

      a
      b

      Step 2

      Place 14-B onto 14-C.

      Screw the parts together using 2x LP.

      a
      b

      Step 3

      Parts 14-N and 14-P are marked 'L1' and 'L2' (circled).

      a

      Step 4

      Press 14-N onto 14-J on the side marked 'L1'.

      Screw the parts together using 2x KP.

      a
      b

      Step 5

      Press 14-P onto 14-J on the side marked 'L2'.

      Screw the parts together using 2x KP.

      a
      b

      Step 6

      Press 14-K (marked 'L1') onto the assembly.

      a
      b

      Step 7

      Press 14-L (marked 'L2') onto the assembly.

      a
      b

      Step 8

      Align 14-Q with the assembly as shown.

      Press 14-Q into the assembly. Repeat this process to fit 3x 14-Q, making sure the grilles are aligned correctly.

      a
      b

      Step 9

      Repeat on the opposite side of the assembly.

      Make sure the grilles are aligned in the same way.

      a
      b

      Step 10

      Press 14-H onto the assembly.

      a
      b

      STAGE COMPLETE

      Stage 15-v1: The left engine nacelle – part 2

      PARTS LIST

      15-A15-J
      15-B15-K
      15-C15-L
      15-D15-M
      15-E15-N
      15-F15-P
      15-GHP x3
      15-HLP x3

      Step 1

      Glue 15-L into 15-G.

      a
      b

      Step 2

      Glue 15-M into 15-G.

      a
      b

      Step 3

      Place 14-C (stage 14) onto 13-A (stage 13).

      Screw the parts together using 3x LP (supplied in stage 14).

      a
      b

      Step 4

      Press 14-G into the assembly.

      Take care as the pins are fragile.

      a
      b

      Step 5

      Press 14-A (stage 14) onto the assembly.

      a
      b

      Step 6

      Place 15-H onto 15-J.

      Screw the parts together using 2x HP. The LEDs should be visible from the other side (circled).

      a
      b
      c

      Step 7

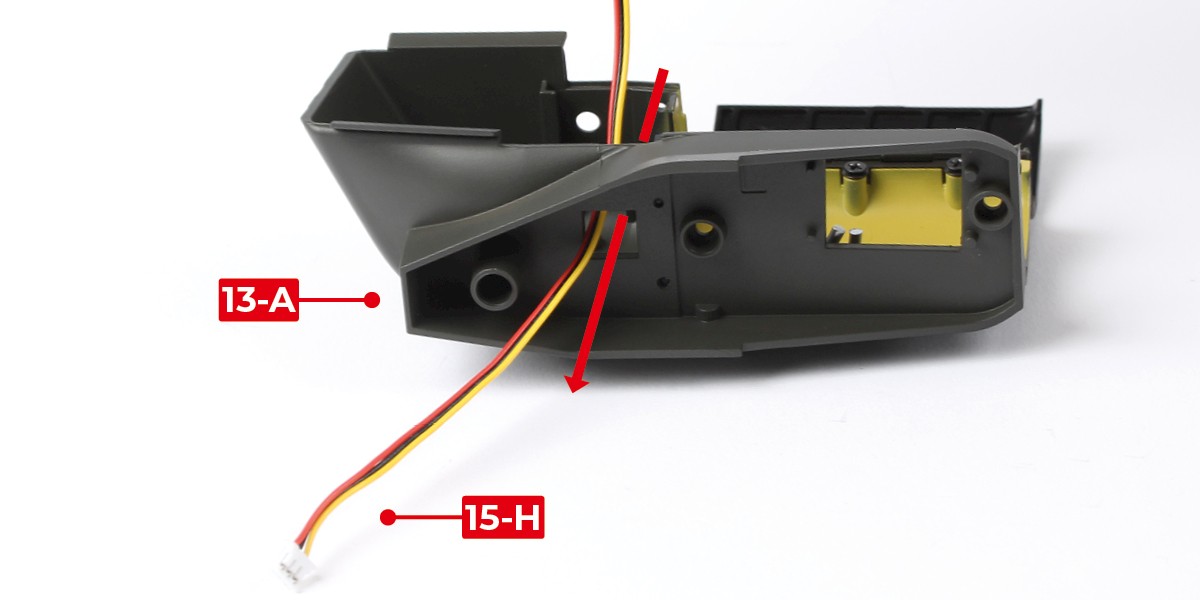

      Thread the cable from 15-H through 13-A as shown.

      a

      Step 8

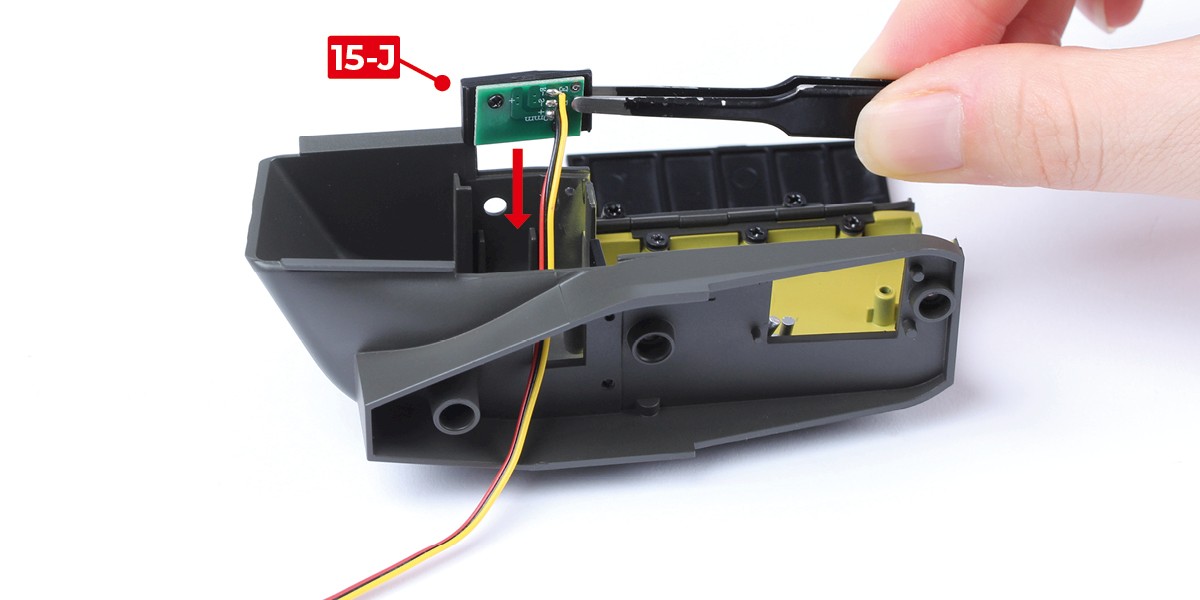

      Insert 15-J into the assembly as shown.

      a
      b

      Step 9

      Press 15-E and 15-F into the assembly.

      a
      b

      Step 10

      Press 15-N onto the assembly.

      a
      b

      Step 11

      Press 15-K onto the engine assembly (stage 12).

      a
      b

      Step 12

      Cut out the decals from 13-C as shown.

      a

      Step 13

      Apply decals A, B and C to the engine assembly.

      a
      b

      STAGE COMPLETE

      Stage 15-v2: The left engine nacelle – part 2

      Do not fit parts 15-G, 15-L and 15-M in this stage. The parts for this version will be provided in a later pack.

      PARTS LIST

      15-A15-J
      15-B15-K
      15-C15-L
      15-D15-M
      15-E15-N
      15-F15-P
      15-GHP x3
      15-HLP x3

      Step 1

      Place 14-C (stage 14) onto 15-A.

      Screw the parts together using 3x LP (supplied in stage 14).

      a
      b

      Step 2

      Press the 14-H (stage 14) onto the assembly.

      Screw the parts together with 2x JP (supplied with stage 13).

      a
      b

      Step 3

      Place 15-H onto 15-D.

      Screw the parts together using 2x HP.

      a
      b

      Step 4

      Press the assembly onto 15-B.

      a
      b

      Step 5

      Thread the end of the cable through 15-C as shown.

      a

      Step 6

      Thread the end of the cable through 15-A.

      a

      Step 7

      Press 15-C onto the assembly.

      a
      b

      Step 8

      Screw the parts together using 2x LP.

      a

      Step 9

      Glue 15-P onto the assembly.

      a
      b

      Step 10

      Press 15-B into the assembly.

      a
      b

      Step 11

      Press 15-E and 15-F into the assembly.

      a
      b

      Step 12

      Press 15-N onto the assembly.

      a
      b

      Step 13

      Press 15-K onto the engine assembly (stage 12).

      a
      b

      Step 14

      Cut out the decals from 13-C as shown.

      a

      Step 15

      Apply decals A, B and C to the engine assembly.

      a
      b

      STAGE COMPLETE

      Stage 16: The left engine nacelle – part 3

      Follow Stage 16 to continue building the engine nacelle for both version 1 and version 2.

      PARTS LIST

      16-A16-F16-L
      16-B16-G16-M
      16-C16-H
      16-D x216-J x2
      16-E x216-K x2

      Step 1

      Press 16-A into 16-B.

      Apply glue to the assembly as shown by the red circle.

      a
      b

      Step 2

      Glue 16-M onto the assembly.

      a
      b

      Step 3

      Glue the assembly onto 16-G.

      a
      b

      Step 4

      Press the assembly onto the engine nacelle (stage 15). Do not glue.

      a
      b

      Step 5

      Glue 16-H onto 16-L.

      a
      b

      Step 6

      You will now build the missiles.

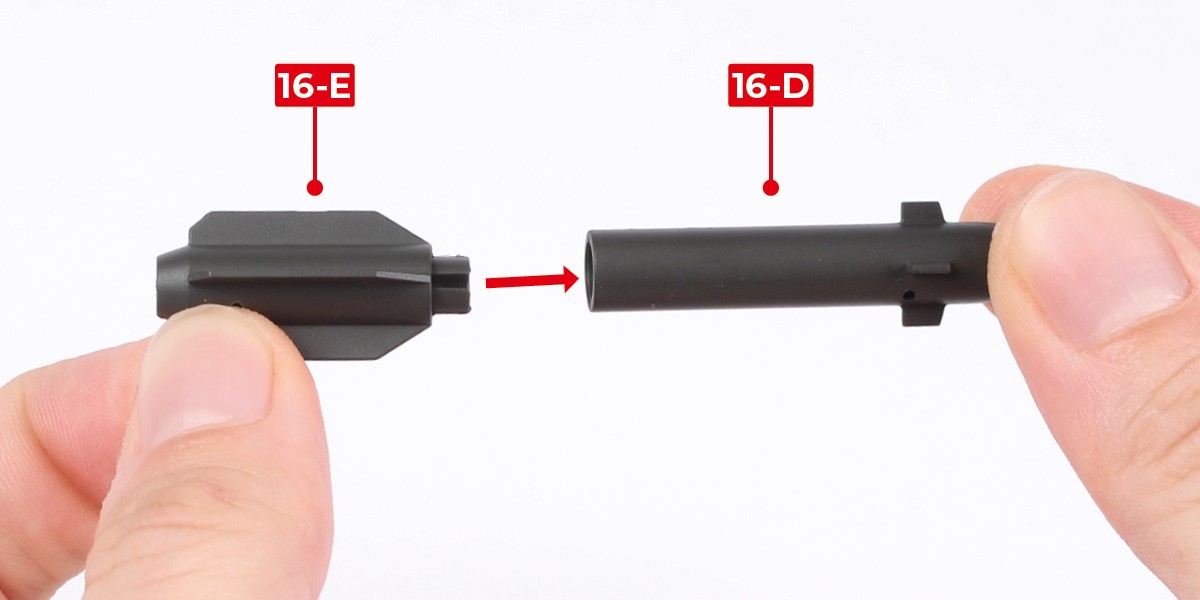

      Press 16-E into 16-D.

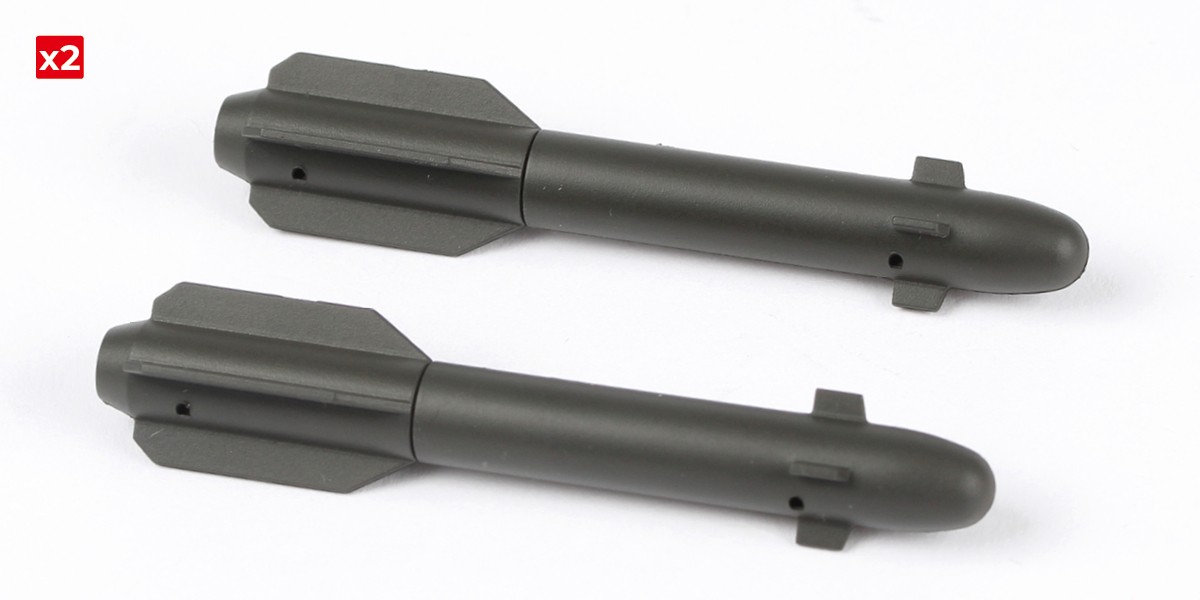

      Repeat this process to make two missiles.

      a
      b

      Step 7

      Cut parts 16-K and 16-J off the sprues.

      a
      b

      Step 8

      Glue 16-K onto the assembly.

      a
      b

      Step 9

      Glue 16-J onto the assembly.

      a
      b

      Step 10

      Repeat this process to assemble the second missile.

      a

      Step 11

      Cut the decals outlined in red from 13-C.

      a
      b

      Step 12

      Apply decals A, B and C to the missile.

      Repeat this process to apply decals to the second missile.

      a
      b

      Step 13

      Cut the decals outlined in red from 13-C.

      a
      b

      Step 14

      Apply the two decals labelled G to 16-F.

      Apply decal K to the inside of 16-F.

      a
      b

      Step 15

      Press 16-F onto 16-C.

      a
      b

      Step 16

      Apply decals D, E, F, H and J to the ends of 16-C and 16-F.

      a
      b

      STAGE COMPLETE

      Stage 17: Assembling the fourth rotor blade

      PARTS LIST

      17-A17-F x7
      17-B17-G
      17-C x217-H
      17-D17-J
      17-EGP x2

      Step 1

      Place 9-J (stage 09) under 17-A.

      9-J is marked with a '1' (circled).

      a

      Step 2

      Place 9-H (stage 09) on top.

      a
      b

      Step 3

      Press 2x 17-F through the parts to secure them.

      a
      b

      Step 4

      Insert 17-C between 9-H and 9-G. Check the orientation of the parts carefully. There is a pin on 17-C (circled).

      Press 17-F through the parts to secure them.

      a
      b

      Step 5

      Repeat this process on the opposite side.

      a

      Step 6

      Press 9-L onto 17-B. Check that 9-L is facing up.

      Screw the parts together using 1x GP.

      a
      b

      Step 7

      Press 17-E onto the assembly.

      a

      Step 8

      Insert the rotor blade into the assembly.

      a
      b

      Step 9

      Press 17-F through the assembly on both sides.

      a
      b

      Step 10

      Insert 17-H from underneath.

      a

      Step 11

      Place 17-J on top.

      Screw 17-H into 17-J.

      a
      b

      Step 12

      Take the decals from 13-C.

      Apply decals D to 17-G.

      a
      b

      Step 13

      Apply decal G to the inside of 17-G

      a

      Step 14

      Press 17-G onto 17-D.

      a
      b

      Step 15

      Apply decals A, B, C, E and F to the assembly.

      a
      b

      STAGE COMPLETE

      Stage 18: Assembling the radar

      PARTS LIST

      18-A18-L18-W18-AG
      18-B18-M18-X18-AH
      18-C18-N18-Y18-AJ
      18-D18-P18-Z18-AK
      18-E18-Q x318-AA18-AL
      18-F18-R18-AB18-AM
      18-G18-S18-ACCP x3
      18-H18-T18-AD x2KP x2
      18-J18-U18-AE
      18-K18-V18-AF x7

      Step 1

      Press 18-M into 18-L.

      a
      b

      Step 2

      Glue 18-V onto the assembly.

      a
      b

      Step 3

      Glue the assembly onto 18-G.

      a
      b

      Step 4

      Glue 18-K onto the assembly.

      a
      b

      Step 5

      Cut 18-AF off the sprue.

      a

      Step 6

      Glue 18-AF to the assembly.

      a
      b

      Step 7

      Repeat this process with 6x 18-AF.

      a

      Step 8

      Glue 18-AD onto 18-F. Make sure the hole (circled) faces outwards.

      Glue the other 18-AD onto the opposite side.

      a
      b

      Step 9

      Glue 18-X to the assembly.

      a
      b

      Step 10

      Glue 18-AE to 18-B.

      a
      b

      Step 11

      Place 18-D onto the assembly.

      Screw the parts together using 2x CP.

      a
      b

      Step 12

      Press 18-P onto the assembly.

      a
      b

      Step 13

      Glue 18-Y onto the assembly.

      a
      b

      Step 14

      Glue 18-AB to the assembly.

      a

      Step 15

      Glue the two ends of 18-AB into 18-P.

      a

      Step 16

      Glue the remaining end of 18-AB onto 18-D.

      a

      Step 17

      Press 18-N onto the assembly.

      a
      b

      Step 18

      Press 18-S onto the assembly.

      a
      b

      Step 19

      Glue 18-AL onto the assembly.

      a
      b

      Step 20

      Glue 18-Z to the assembly.

      a
      b

      Step 21

      Glue 18-AG to the assembly.

      a
      b

      Step 22

      Glue 18-AK to the assembly.

      a
      b

      Step 23

      Glue 18-AM to the assembly.

      Parts 18-AM and 18-AH are very similar. Make sure you have identified the correct parts.

      a
      b

      Step 24

      Glue 18-AH to the assembly.

      a
      b

      Step 25

      Glue 18-W to 18-T.

      a
      b

      Step 26

      Glue 18-AJ to 18-T.

      a
      b

      Step 27

      Press 18-T onto the assembly.

      a
      b

      Step 28

      Glue 18-AA to the assembly.

      a
      b

      Step 29

      Press 3x 18-Q into 18-C.

      a
      b

      Step 30

      Test-fit the parts before gluing.

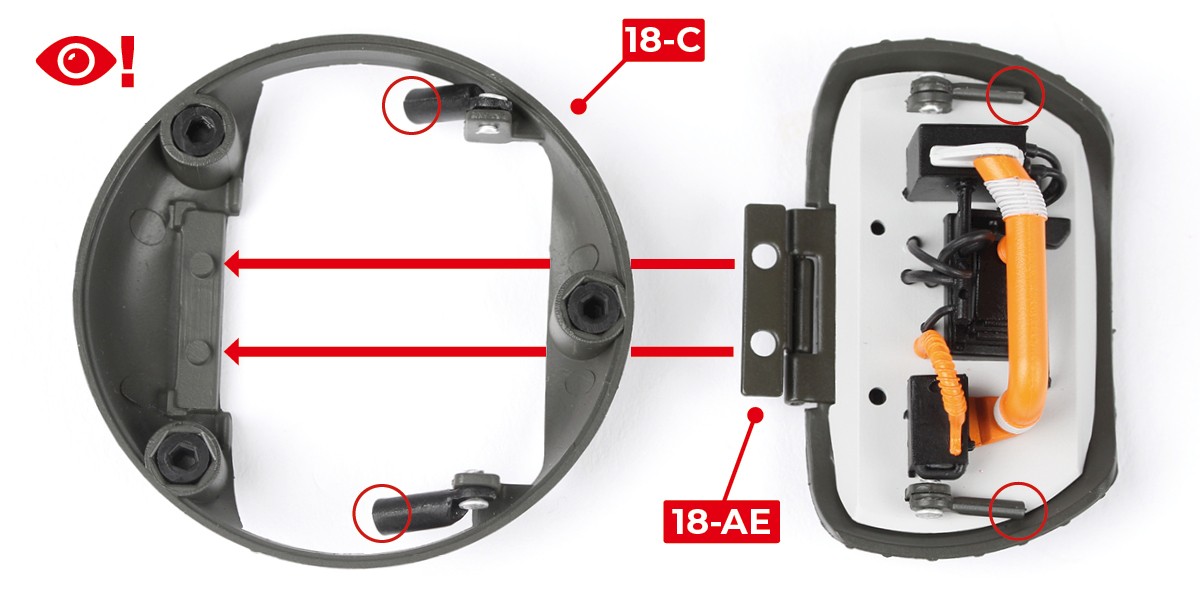

      Place 18-AE onto 18-C and push the rods into the cylinders (circled) at the same time.

      The rods should be able to move in and out of the cylinders. You may need to remove excess paint from the rods.

      Once you are sure of the fit, glue 18-AE to 18-C.

      a
      b

      Step 31

      Glue 18-R to 18-E.

      a
      b

      Step 32

      Glue 18-J to 18-R.

      a
      b

      Step 33

      Press 18-R onto the assembly.

      a
      b

      Step 34

      Glue 18-AC to the assembly.

      a
      b

      Step 35

      Press 18-A onto the assembly.

      a
      b

      Step 36

      Press 18-H onto 18-G.

      a
      b

      Step 37

      Place 18-H onto 18-B.

      Screw the parts together using 1x KP.

      a
      b

      Step 38

      Push 18-U onto the assembly.

      a

      Step 39

      Cut the decals from 13-C as shown.

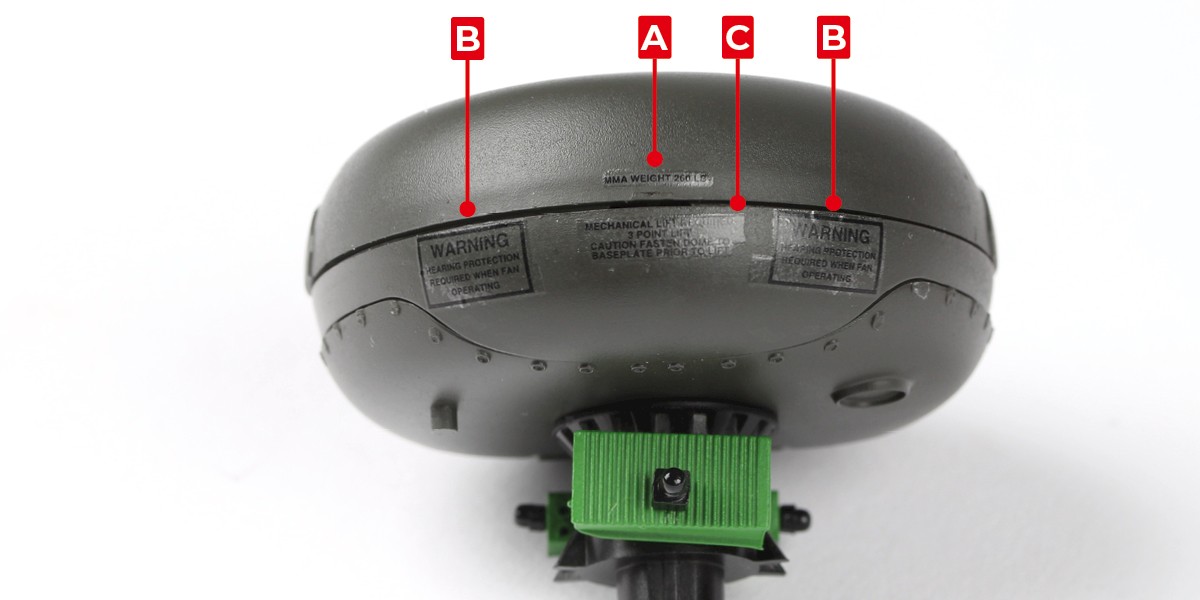

      Apply decals A, B and C to the assembly.

      a
      b

      Step 40

      Apply decal D to the assembly.

      a
      b

      Step 41

      Apply decals E and F to the assembly.

      a
      b

      STAGE COMPLETE

      Stage 19: Assembling the right engine

      PARTS LIST

      19-A19-G
      19-B19-H
      19-C19-J
      19-D19-K
      19-E19-L
      19-F

      Step 1

      Press 19-A into 19-C.

      a
      b

      Step 2

      Glue 19-B to the assembly.

      a
      b

      Step 3

      Glue 19-D to the assembly.

      a
      b

      Step 4

      Glue 19-E to the assembly.

      a
      b

      Step 5

      Glue 19-K to 19-F. Check the orientation carefully.

      a
      b

      Step 6

      Glue 19-F to the assembly.

      a
      b

      Step 7

      Glue 19-H to the assembly.

      a
      b

      Step 8

      Glue 19-J to the assembly.

      a
      b

      Step 9

      Glue 19-L to the assembly.

      a
      b

      Step 10

      Glue 19-G to the assembly.

      a
      b

      STAGE COMPLETE

      Stage 20: Preparing the rockets

      PARTS LIST

      20-A20-C
      20-B x16JP x3

      Step 1

      Cut the decals outlined in red from 13-C.

      a

      Step 2

      Apply the decals to 20-B, checking their alignment with the rockets from previous stages.

      a
      b

      Step 3

      Repeat to make 16 rockets.

      a

      Step 4

      Press 20-C onto 20-A.

      a
      b

      STAGE COMPLETE

      Stage 21-v1: The right engine nacelle – part 1

      PARTS LIST

      21-A21-G21-N
      21-B21-H21-P
      21-C21-J21-Q x6
      21-D21-KKP x5
      21-E21-LLP x6
      21-F x321-M

      Step 1

      Place 21-B onto 21-C.

      Screw the parts together with 2x LP.

      a
      b

      Step 2

      Glue 21-G to 21-D.

      a
      b

      Step 3

      Press 21-F onto the assembly.

      Repeat to fit 3x 21-F.

      a
      b

      Step 4

      Press 21-E onto the assembly.

      a
      b

      STAGE COMPLETE

      Stage 21-v2: The right engine nacelle – part 1

      PARTS LIST

      21-A21-G21-N
      21-B21-H21-P
      21-C21-J21-Q x6
      21-D21-KKP x5
      21-E21-LLP x6
      21-F x321-M

      Step 1

      Place 21-B onto 21-C.

      Screw the parts together with 2x LP.

      a
      b

      Step 2

      Press 21-N onto 21-J on the side marked 'R1'.

      Screw the parts together using 2x KP.

      a
      b

      Step 3

      Press 21-P onto 21-J on the side marked 'R2'.

      Screw the parts together using 2x KP.

      a
      b

      Step 4

      Press 21-K (marked 'R1') onto the assembly.

      a
      b

      Step 5

      Press 21-L (marked 'R2') onto the assembly.

      a
      b

      Step 6

      Align 21-Q with the assembly.

      Press 21-Q into the assembly. Repeat this process to fit 3x 21-Q, making sure the grilles are aligned correctly.

      a
      b

      Step 7

      Repeat on the opposite side of the assembly.

      Make sure the grilles are aligned in the same way.

      a

      Step 8

      Press 21-H onto the assembly.

      a
      b

      STAGE COMPLETE

      Stage 22-v1: The right engine nacelle – part 2

      PARTS LIST

      22-A22-H
      22-B22-J
      22-C22-K
      22-D22-L
      22-ELP x3
      22-F (Do not use – a replacement piece will be supplied in pack 8)HP x3
      22-G

      Step 1

      Place 21-C (stage 21) onto 20-A (stage 20).

      Screw the parts together using 3x LP (supplied in stage 21).

      a
      b

      Step 2

      Press 21-A (stage 21) onto the assembly.

      a
      b

      Step 3

      Place 22-G onto 22-H.

      Screw the parts together using 2x HP.

      a
      b

      Step 4

      Thread the cable through the assembly then push 22-H into place.

      a
      b

      Step 5

      Press 22-E onto the assembly.

      The navigation light in the hole adjacent will be fixed in a later pack.

      a

      Step 6

      Press 22-K onto the assembly.

      a
      b

      Step 7

      Press 22-J onto the engine assembly (stage 19).

      a
      b

      STAGE COMPLETE

      Stage 22-v2: The right engine nacelle – part 2

      PARTS LIST

      22-A22-H
      22-B22-J
      22-C22-K
      22-D22-L
      22-ELP x3
      22-F (Do not use – a replacement piece will be supplied in pack 8)HP x3
      22-G

      Step 1

      Place 21-C (stage 21) onto 22-A.

      Screw the parts together using 3x LP (supplied in stage 21).

      a
      b

      Step 2

      Press the 21-H (stage 21) onto the assembly.

      Screw the parts together with 2x JP (supplied with stage 20).

      a
      b

      Step 3

      Place 22-G onto 22-D.

      Screw the parts together using 2x HP.

      a
      b

      Step 4

      Press 22-D onto 22-B.

      a
      b

      Step 5

      Thread the end of the cable through 22-C as shown.

      a

      Step 6

      Thread the end of the cable through the assembly then press 22-C into place.

      a
      b

      Step 7

      Screw the parts together using 2x LP.

      a

      Step 8

      Glue 22-L onto the assembly.

      a

      Step 9

      Press 22-B onto the assembly

      a
      b

      Step 10

      Press 22-E onto the assembly.

      The navigation light in the hole adjacent will be fixed in a later pack.

      a

      Step 11

      Press 22-K onto the assembly.

      a
      b

      Step 12

      Press 22-J onto the engine assembly (stage 19).

      a
      b

      STAGE COMPLETE

      Never miss a thing

      Stay up to date with the latest model news and opinions from Agora Models by signing up to Scale Up, our monthly newsletter. We’ll keep you informed of all our new model developments, give you early previews and sneak peeks, plus quick-look details of what’s currently available to buy.

      + Receive 50 Agora Advantage Club Reward Points when you subscribe to the newsletter!
